Validate Vision AI Ideas — Fast
Built For Event-Driven Vision
Sleeps most of the time. Wakes only when events happen
Sleep
Standby
Performance
Event wake-up via MQTT / RTC / Bluetooth
Built For Event-Driven Vision
Sleeps most of the time. Wakes only when events happen
Open Hardware Design
Hardware design documentation available

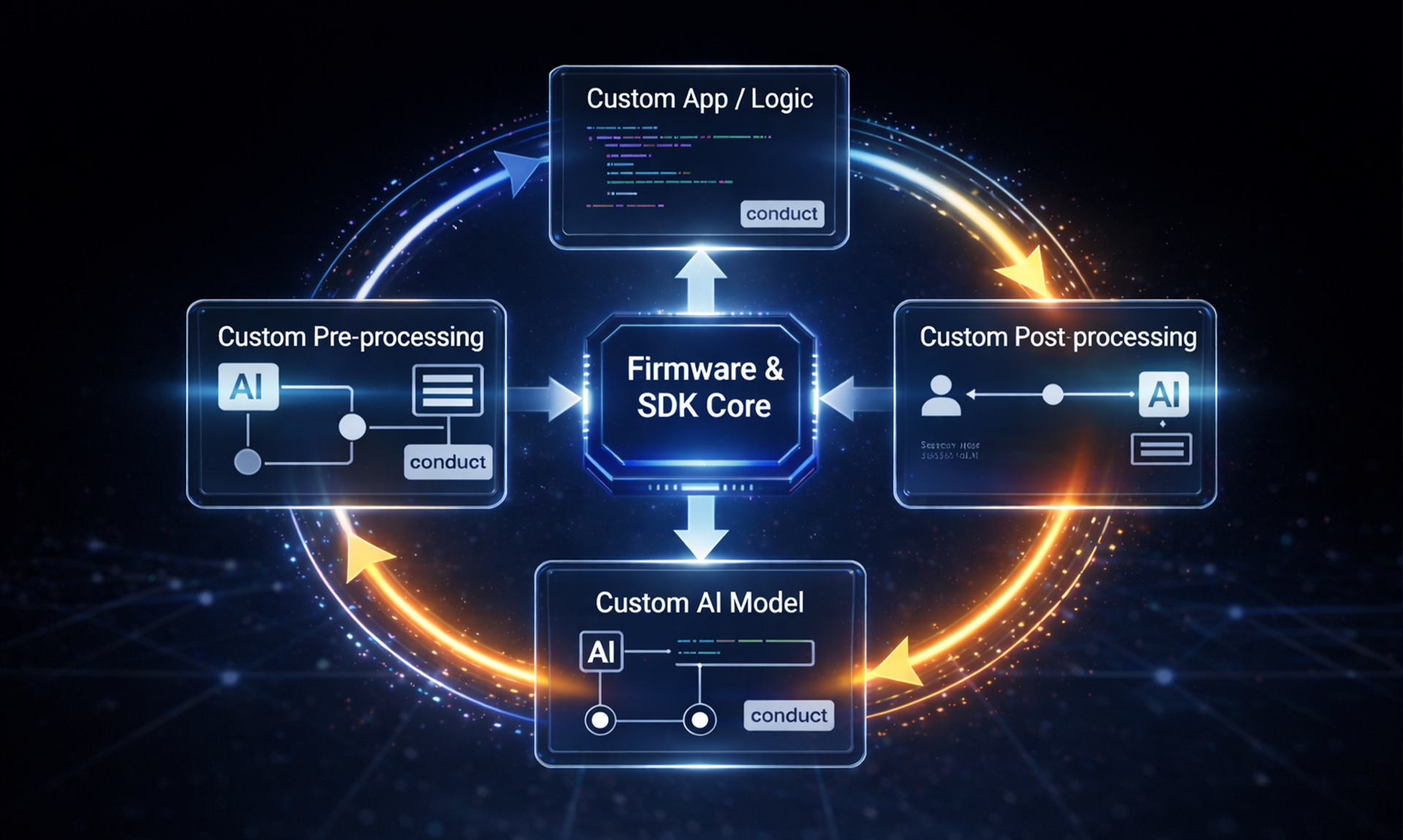

Open & Modifiable Software Stack
Source-accessible firmware & SDK Customize logic, pipelines, and AI models
Powerful AI Inference
Inspectable local data & events SD card
Powerful Independent OTA Updates
OTA updates for firmware and AI models Versioned, rollback-ready
Standard Integration Interfaces
Integrate via standard HTTP or MQTT
Open Hardware Design
Hardware design documentation available
Open & Modifiable Software Stack
Source-accessible firmware & SDK Customize logic, pipelines, and AI models
Inspectable Local Data & Events
Inference logs and events stored locally via SD card
Independent OTA Updates
OTA updates for firmware and AI models Versioned, rollback-ready
Standard Integration Interfaces
Integrate via standard HTTP or MQTT
Designed to
Run Unattended
— For Months or Years
-
IP67
-
−20 °C to 50 °C
-
Multiple mounting options
-
Power Options: 4× AA battery、USB-C、PoE
NE301 WiFi Version
2.0-Year
Estimated Lifespan
NE301 LTE Cat.1 Version
1.5-Year
Estimated Lifespan
NE301 System Variants
-
NE301 LTE Cat.1 Version
Best for Indoor or networked environments with existing Wi-FiConnectivity Wi-Fi (2.4 GHz) + BluetoothPower Low-power, battery-friendlyMobility Medium(Wi-Fi range dependent)Choose this if Already have Wi-Fi and want the simplest, lowest-cost setup*Wi-Fi included in all NE301 variants.
-
NE301 Cat.1 Version
Best for Remote, outdoor, or infrastructure-free deploymentsConnectivity 4G LTE Cat-1 (Data only)Power Low-power, optimized for long standbyMobility High (cellular coverage dependent)Choose this if Operate without local network access -
NE301 PoE Version
Best for Fixed installations with continuous operationConnectivity EthernetPower Always-on, full-performanceMobility Low (wired installation)Choose this if need stable connectivity and continuous AI or video workloadsComing Late March
NE301 System Variants
NE301 is available in three variants: LTE Cat.1, Wi-Fi, and PoE. Each variant is optimized for different use cases and environments.
Where NE301 Fits Best
- Event-driven monitoring
- Power-sensitive edge deployments
- NE301 LTE Cat.1 Version
- NE301 LTE Cat.1 Version
- High-throughput imaging or high-speed capture
- GPU-class or heavy-compute AI workloads
- High-speed or ultra-low latency applications
- Hazardous or highly corrosive environments
- Event-driven monitoring
- Power-sensitive edge deployments
- NE301 LTE Cat.1 Version
- NE301 LTE Cat.1 Version
- High-throughput imaging or high-speed capture
- GPU-class or heavy-compute AI workloads
- High-speed or ultra-low latency applications
- Hazardous or highly corrosive environments
Specifications
| Core | Cortex-M55 @ 800 MHz, Arm Helium (M-Profile Vector Extension) |
| NPU | Neural-ART™ accelerator @1GHz, up to 0.6 TOPS AI inference |
| SRAM | 4.2 MB |
| ISP | On-Chip ISP with demosaicing, AWB |
| Vido Codec | H.264 Hardware encoder, JPEG codec, supports 1080p@30fps |
| NPU Efficiency | 3 TOPS/W, fanless |
| Boot / Wake Time | Microsecond boot, Millisecond wake-up |
| Power Ctrl Unit | The STM32U073Kx further reduces N6 power consumption through independent, refined power management. |
| HyperFlash | 128 MB |
| PSRAM | 64 MB |
| Buttons (On-board) | 1x Reset、1x Boot、1x Snapshot / Recording |
| Indicators (On-board) | 1x Power LED (PWR)、1x Status LED (STS) 、1x Debug LED |
| Communication | WiFi6 / Bluetooth 5.4 |
| Lens Module | 1x 4-Pin USB、1x MIPI CSI-2 |
| I/O Interfaces | 1x UART、1x RS485、1x I2C、2x GPIO、2x GND、1x 3.3V / 5V (controllable) |
| Debug/Power | 1x USB Type-C、1x 4-Pin UART |
| Audio I/O | 1x Audio-IN 、1x Audio-OUT |
| Communication Expansion | 12-Pin + 16-Pin expansion IOs for communication modules |
| Power Interface | 2-Pin Connector (Battery / USB Type-C) 4MP OS04C10 / USB Camera Module |
| Camera Module | 4MP OS04C10 / USB Camera Module |
| Sensor Expansion | 2-Pin Connector (Battery / USB Type-C) |
| Power | 5V DC-In |
| Operating Temperature | -20°C ~ 50°C |
| Ambient Humidity | 0–95% RH (non-condensing) |
| Dimensions | 77 x 77 x 48 mm |
| Certification | CE / FCC |
-
How to assemble CamThink NeoEyes NE301 camera in a simple way
-
How to assemble CamThink NeoEyes NE301 camera in a simple way
-
AI camera (CamThink NeoEyes NE301)
FAQ
- Yes. The NE301 firmware is fully open-source and supports secondary development. You can access the source code and documentation on CamThink's GitHub.
- For hardware customization tailored to your specific needs, please contact us at sales@camthink.ai
NE301 currently supports YOLOv8. The device utilizes the N6 architecture as its model adaptation foundation. We are continuously expanding the library of compatible models based on the N6 core. For a broader list of compatible models, please refer to the STM32 Model Zoo - STMicroelectronics.
We offer professional model customization services for specialized industry scenarios. Feel free to reach out for technical consultation at support@camthink.ai
No.
The Cat-1 version requires a user-provided SIM card and cellular plan.
- Wi-Fi version relies on existing local Wi-Fi infrastructure and offers the lowest deployment cost in networked environments.
- Cat-1 version uses cellular connectivity and is designed for remote or infrastructure-free deployments.
Both versions share the same event-triggered AI vision core and low-power architecture.
